FlutterArtist FilterInput Example 1

Structure of the example
Employee40aShelf
Employee40aFilterInput
Employee40aFilterModel
Employee40aFilterPanel
Employee40aBlock

In real-world apps, we often need to set filter states externally — such as restoring a search from history or opening a specific filter via deep linking. Instead of forcing users to act manually, FilterInput allows you to "command" the filter through code, ensuring perfect synchronization.

FilterInput acts as a raw "blueprint". It represents input hints, allowing you to set data and current values for criteria without user interaction. Imagine simply passing the string "VINFAST", and the filter automatically knows to select VinFast Company, reload its departments, and display results instantly.

FilterInput đại diện cho một đầu vào của bộ lọc, cho phép cung cấp gợi ý để thiết lập dữ liệu và giá trị hiện thời cho cho tiêu chí thông qua code thay vì các thao tác của người dùng.

1. Structure of the example

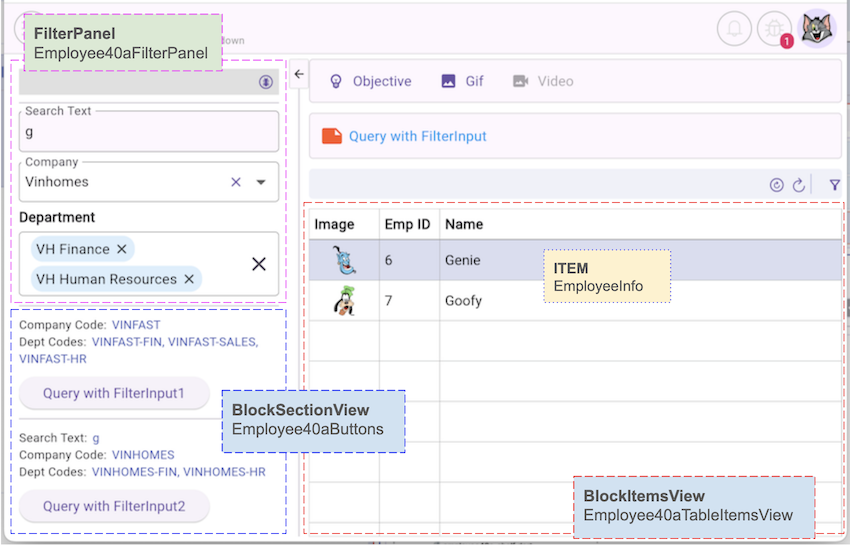

The interface of the example:

No ADS

2. Employee40aShelf

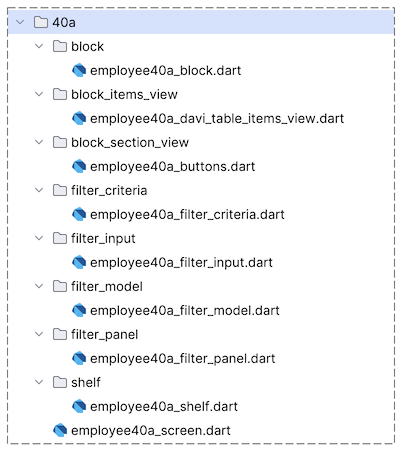

This example is quite simple; the Shelf only consists of a Block and a FilterModel.

employee40a_shelf.dart

class Employee40aShelf extends Shelf {
  @override
  ShelfStructure defineShelfStructure() {
    return ShelfStructure(
      filterModels: {
        Employee40aFilterModel.filterName: Employee40aFilterModel(),
      },
      blocks: [
        Employee40aBlock(
          name: Employee40aBlock.blkName,
          description: null,
          config: BlockConfig(),
          filterModelName: Employee40aFilterModel.filterName,
          formModel: null,
          childBlocks: [],
        ),
      ],
    );
  }

  Employee40aFilterModel findEmployee40aFilterModel() {
    return findFilterModel(Employee40aFilterModel.filterName)
        as Employee40aFilterModel;
  }

  Employee40aBlock findEmployee40aBlock() {
    return findBlock(Employee40aBlock.blkName) as Employee40aBlock;
  }
}

3. Employee40aFilterInput

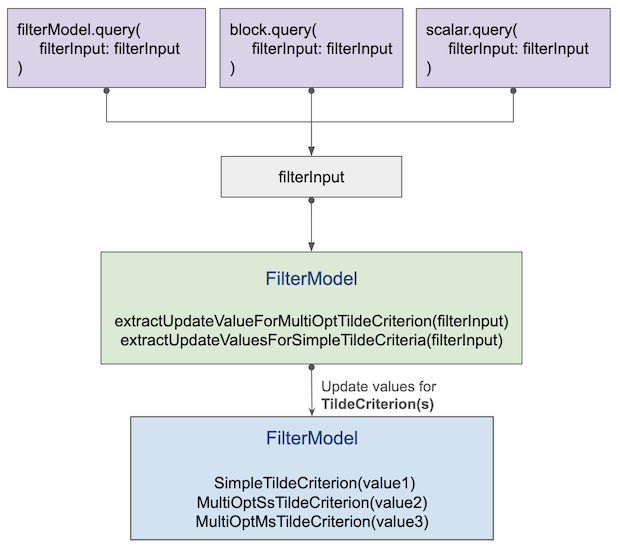

The image below illustrates how the raw values of FilterInput are converted into values to update the criteria of FilterModel.

The Employee40aFilterInput class extends FilterInput, containing raw attributes (usually Strings or IDs) to "map" into complex criteria within the FilterModel.

employee40a_filter_input.dart

class Employee40aFilterInput extends FilterInput {
  final String? searchText;
  final String? companyCode;
  final List<String> departmentCodes;

  Employee40aFilterInput({
    required this.searchText,
    required this.companyCode,
    required this.departmentCodes,
  });

  @override
  String toString() {
    return "searchText: $searchText, "
        "companyCode: $companyCode, "
        "departmentCodes: $departmentCodes";
  }
}

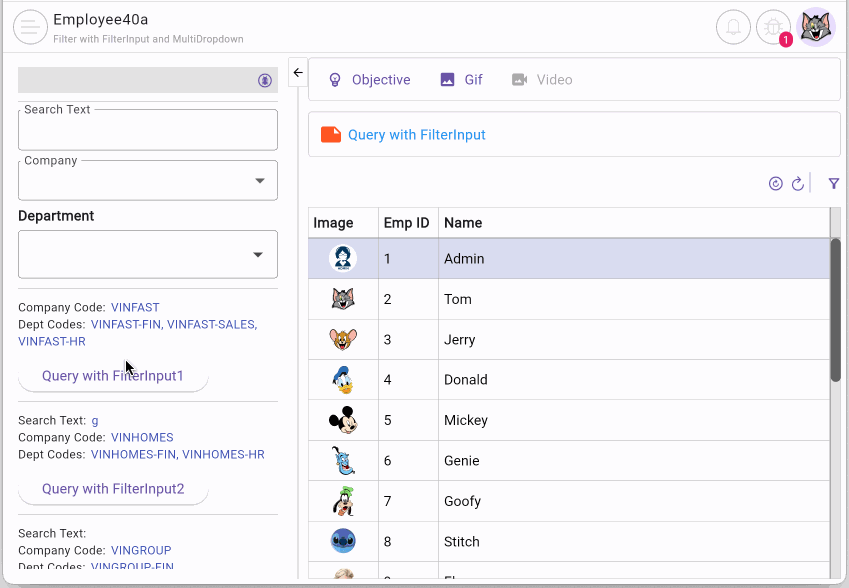

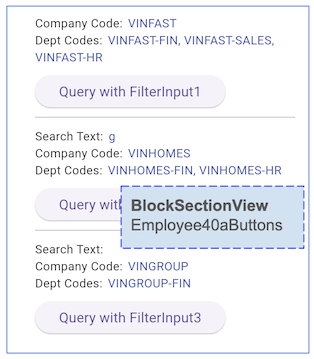

To illustrate this visually, we have 3 buttons that perform data queries on Employee40aBlock with 3 different filterInput(s) values.

No ADS

filterInput1 is used when Button1 is pressed:

var filterInput1 = Employee40aFilterInput(
  searchText: null,
  companyCode: "VINFAST",
  departmentCodes: ["VINFAST-FIN", "VINFAST-SALES", "VINFAST-HR"],
);
await block.query(filterInput: filterInput1);

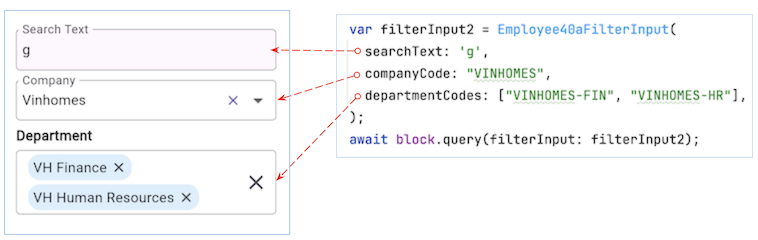

filterInput2 is used when Button2 is pressed:

var filterInput2 = Employee40aFilterInput(
  searchText: 'g',
  companyCode: "VINHOMES",
  departmentCodes: ["VINHOMES-FIN", "VINHOMES-HR"],
);
await block.query(filterInput: filterInput2);

filterInput3 is used when Button3 is pressed:

var filterInput3 = Employee40aFilterInput(
  searchText: '',
  companyCode: "VINGROUP",
  departmentCodes: ["VINGROUP-FIN"],
);
await filterModel.queryAll(filterInput: filterInput3);

4. Employee40aFilterModel

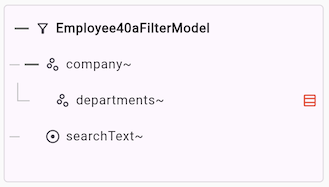

Employee40aFilterModel is where the "magic" happens; it takes raw data from FilterInput and transforms it into fully functional business objects. Let's first look at the structure of this FilterModel:

defineFilterModelStructure()

@override
FilterModelStructure defineFilterModelStructure() {
  return FilterModelStructure(
    criteriaStructure: FilterCriteriaStructure(
      simpleCriterionDefs: [
        SimpleFilterCriterionDef<String>(criterionBaseName: "searchText"),
      ],
      multiOptCriterionDefs: [
        // Multi Option Single Selection Criterion.
        MultiOptFilterCriterionDef<CompanyInfo>.singleSelection(
          criterionBaseName: "company",
          fieldName: 'companyId',
          toFieldValue: (CompanyInfo? rawValue) {
            return SimpleVal.ofInt(rawValue?.id);
          },
          children: [
            // Multi Option Multi Selection Criterion.
            MultiOptFilterCriterionDef<DepartmentInfo>.multiSelection(
              criterionBaseName: "departments",
              fieldName: 'departmentId',
              toFieldValue: (DepartmentInfo? rawValue) {
                return SimpleVal.ofInt(rawValue?.id);
              },
            ),
          ],
        ),
      ],
    ),
    conditionStructure: FilterConditionStructure(
      connector: FilterConnector.and,
      conditionDefs: [
        FilterConditionDef.simple(
          tildeCriterionName: "searchText~",
          operator: FilterOperator.containsIgnoreCase,
        ),
        FilterConditionDef.simple(
          tildeCriterionName: "company~",
          operator: FilterOperator.equalTo,
        ),
        FilterConditionDef.simple(
          tildeCriterionName: "departments~",
          operator: FilterOperator.inCollection,
        ),
      ],
    ),
  );
}

FilterModel.performLoadMultiOptTildeCriterionXData()

This method is called multiple times to load data for each MultiOptTildeFilterCriterion.

performLoadMultiOptTildeCriterionXData()

@override
Future<XData?> performLoadMultiOptTildeCriterionXData({
  required String multiOptTildeCriterionName,
  required String multiOptCriterionBaseName,
  required Object? parentMultiOptTildeCriterionValue,
  required SelectionType selectionType,
  required Employee40aFilterInput? filterInput,
}) async {
  // Company:
  if (multiOptTildeCriterionName == "company~") {
    // ApiResult<PageData<CompanyInfo>>
    ApiResult<CompanyInfoPage> result = await _companyRestProvider.queryAll();
    // IMPORTANT: Throw ApiError if Error.
    result.throwIfError();
    //
    return ListXData<int, CompanyInfo>.fromPageData(
      pageData: result.data,
      getItemId: (item) => item.id,
    );
  }
  // Department:
  else if (multiOptTildeCriterionName == "departments~") {
    // Because "departments" is child of "company"
    // Therefore, the parentMultiOptTildeCriterionValue is guaranteed to be non-null.
    CompanyInfo company = parentMultiOptTildeCriterionValue as CompanyInfo;
    // ApiResult<PageData<DepartmentInfo>>
    ApiResult<DepartmentInfoPage> result = await _departmentRestProvider
        .queryAllByCompanyId(companyId: company.id);
    // IMPORTANT: Throw ApiError if Error.
    result.throwIfError();
    //
    return ListXData<int, DepartmentInfo>.fromPageData(
      pageData: result.data,
      getItemId: (item) => item.id,
    );
  }
  return null;
}

FlutterArtist ListXData

FilterModel.extractUpdateValuesForSimpleTildeCriteria()

This method provides values to update the SimpleTildeFilterCriterion(s) of the FilterModel based on the values provided by FilterInput.

extractUpdateValuesForSimpleTildeCriteria()

@override
Map<String, SimpleValueWrap?>? extractUpdateValuesForSimpleTildeCriteria({
  required Employee40aFilterInput filterInput,
}) {
  return {"searchText~": SimpleValueWrap.of(filterInput.searchText)};
}

No ADS

FilterModel.extractUpdateValueForMultiOptTildeCriterion()

This method is called to determine the actual value for a MultiOptTildeFilterCriterion of the FilterModel based on the raw value provided by FilterInput. This method will be called multiple times if your FilterModel has multiple MultiOptTildeFilterCriterion(s).

extractUpdateValueForMultiOptTildeCriterion()

@override
OptValueWrap? extractUpdateValueForMultiOptTildeCriterion({
  required String multiOptTildeCriterionName,
  required String multiOptCriterionBaseName,
  required Object? parentMultiOptTildeCriterionValue,
  required SelectionType selectionType,
  required XData multiOptTildeCriterionXData,
  required Employee40aFilterInput filterInput,
}) {
  // Company:
  if (multiOptTildeCriterionName == "company~") {
    var listXData =
        multiOptTildeCriterionXData as ListXData<int, CompanyInfo>;
    CompanyInfo? companyInfo = listXData.data.firstWhere(
      (c) => c.code == filterInput.companyCode,
    );
    //
    return OptValueWrap.single(companyInfo);
  }
  // Department:
  else if (multiOptTildeCriterionName == "departments~") {
    var listXData =
        multiOptTildeCriterionXData as ListXData<int, DepartmentInfo>;
    List<DepartmentInfo>? departmentInfos = listXData.data
        .where((d) => filterInput.departmentCodes.contains(d.code))
        .toList();
    //
    return OptValueWrap.multi(departmentInfos);
  }
  return null;
}

No ADS

FilterModel.createNewFilterCriteria()

createNewFilterCriteria()

@override
Employee40aFilterCriteria createNewFilterCriteria({
  required Map<String, dynamic> tildeCriteriaMap,
}) {
  return Employee40aFilterCriteria(
    searchText: tildeCriteriaMap["searchText~"], // String?
    company: tildeCriteriaMap["company~"], // CompanyInfo?
    departments: tildeCriteriaMap["department~"], // DepartmentInfo?
  );
}

5. Employee40aFilterPanel

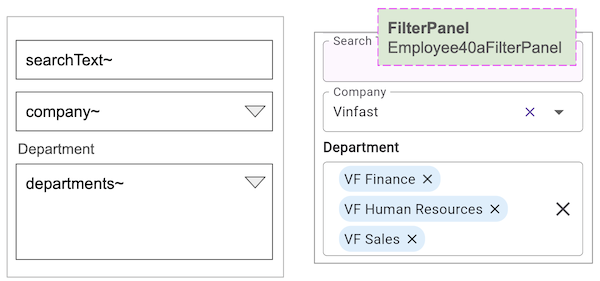

Filter user interface:

employee40a_filter_panel.dart

class Employee40aFilterPanel extends FilterPanel<Employee40aFilterModel> {
  const Employee40aFilterPanel({required super.filterModel, super.key});

  @override
  Widget buildContent(BuildContext context) {
    return Column(
      mainAxisAlignment: MainAxisAlignment.start,
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        buildFilterBar(context),
        const Divider(),
        FaFormBuilderTextField(
          name: "searchText~",
          labelText: "Search Text",
          maxLines: 1,
          floatingLabelBehavior: FloatingLabelBehavior.always,
          onChanged: _onSearchTextChanged,
        ),
        const SizedBox(height: 10),
        FaFormBuilderDeselectableDropdown<CompanyInfo>(
          key: const Key("filter-company"),
          name: "company~",
          labelText: "Company",
          items: filterModel.getMultiOptTildeCriterionData("company~") ?? [],
          getItemText: (item) => item.name,
          onChanged: _onSelectCompany,
          floatingLabelBehavior: FloatingLabelBehavior.always,
        ),
        const SizedBox(height: 5),
        FaFormBuilderMultiDropdown<int, DepartmentInfo>.topLabel(
          key: const Key("filter-department"),
          name: "departments~",
          dropdownTitle: 'Select departments',
          labelText: "Department",
          items:
              filterModel.getMultiOptTildeCriterionData("departments~") ?? [],
          getItemText: (item) => item.name,
          onChanged: _onChangeDepartment,
        ),
      ],
    );
  }

  Future<void> _onSearchTextChanged(String? text) async {
    FlutterArtist.codeFlowLogger.addMethodCall(
      ownerClassInstance: this,
      currentStackTrace: StackTrace.current,
      parameters: {},
    );
    //
    await filterModel.queryAll();
  }

  Future<void> _onSelectCompany(CompanyInfo? company) async {
    FlutterArtist.codeFlowLogger.addMethodCall(
      ownerClassInstance: this,
      currentStackTrace: StackTrace.current,
      parameters: {"company": company},
    );
    //
    await filterModel.queryAll();
  }

  Future<void> _onChangeDepartment(List<DepartmentInfo>? departments) async {
    FlutterArtist.codeFlowLogger.addMethodCall(
      ownerClassInstance: this,
      currentStackTrace: StackTrace.current,
      parameters: {"departments": departments},
    );
    //
    await filterModel.queryAll();
  }
}

6. Employee40aBlock

Employee40aBlock.performQuery()

@override
Future<ApiResult<PageData<EmployeeInfo>?>> performQuery({
  required Object? parentBlockCurrentItem,
  required Employee40aFilterCriteria filterCriteria,
  required SortableCriteria sortableCriteria,
  required Pageable pageable,
}) async {
  return await employeeRestProvider.queryAdvanced(
    pageable: pageable,
    searchText: filterCriteria.searchText,
    companyId: filterCriteria.company?.id,
    departmentIdsAsString: filterCriteria.departmentIdsAsString,
  );
}

No ADS
