In most Form libraries, data is entered into the Form through user interaction. However, in some situations, the program can update Form Fields automatically.

In FlutterArtist, this is achieved through the Patching mechanism. The key point to remember: this method does not directly modify data at the Backend. Instead, it relies on suggestions from a FormInput object to update new values for FormProp(s) within the FormModel, which are then reflected in the user interface.

Scenario: Demo26a

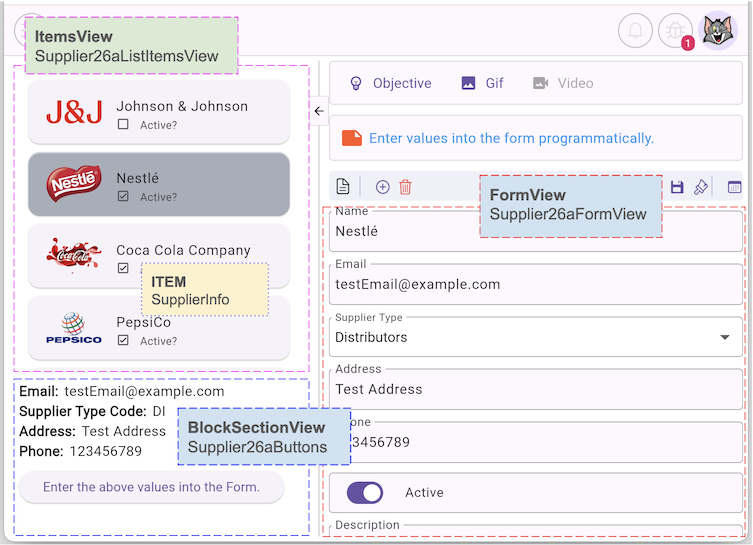

The main screen of this example is divided into two sections:

The left panel displays a list of Suppliers.
The right panel contains a Form that allows the user to create or edit a Supplier.

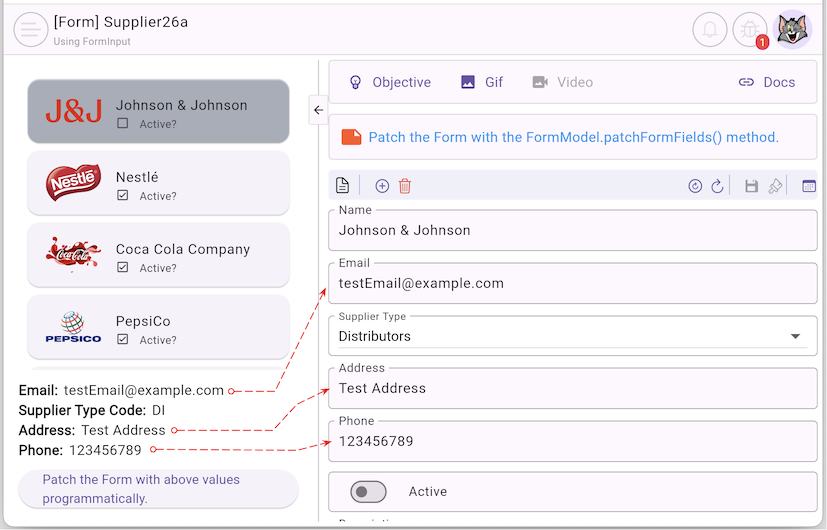

When the user clicks the “Patch Form Fields” button, several fields in the Form are updated or overwritten with new values provided by a FormInput.

Download FlutterArtist Demo

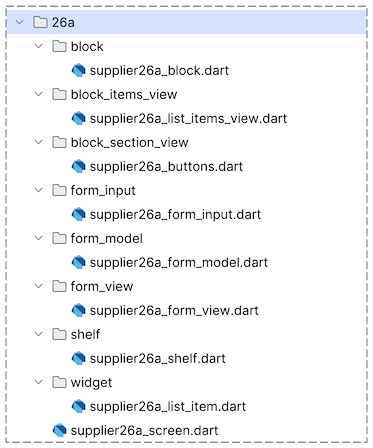

1. Structure of the example

2. Supplier26aFormInput

The Supplier26aFormInput class extends the FormInput class. The values of its properties serve as the basis for calculating and updating the values of the FormModel's FormProp(s).

supplier26a_form_input.dart

class Supplier26aFormInput extends FormInput {
  String email;
  String? supplierTypeCode;
  String address;
  String phone;

  Supplier26aFormInput({
    required this.email,
    required this.supplierTypeCode,
    required this.address,
    required this.phone,
  });

  Supplier26aFormInput.defaultForTest()
    : email = "testEmail@example.com",
      // DI = Distributors
      supplierTypeCode = "DI",
      address = "Test Address",
      phone = "123456789";
}

Note on Validity

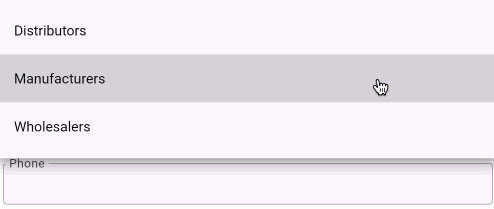

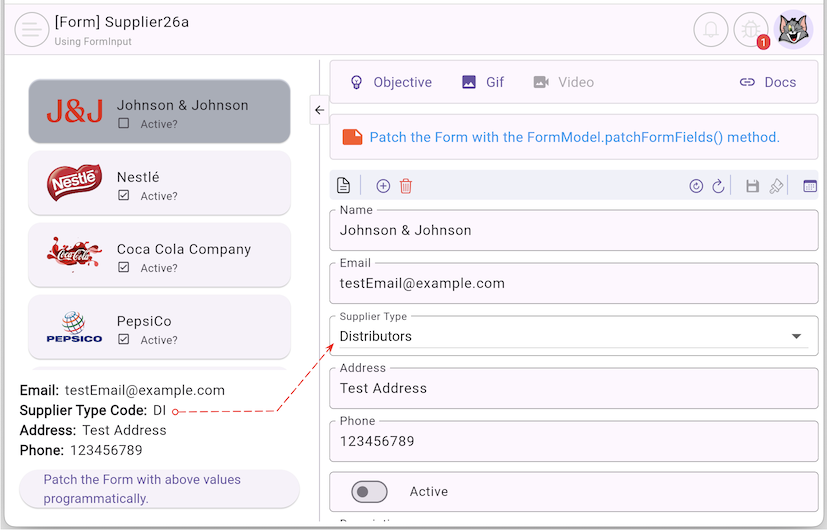

Please pay attention to the MultiOptFormProp("supplierType") seen on the FormView, which has 3 selectable values. Looking at the actual data, there are 3 valid supplierTypeCode(s): ("DI", "MF", "WS").

If your Supplier26aFormInput provides an invalid supplierTypeCode (one that doesn't match the list), FlutterArtist will be unable to calculate the corresponding value to update the MultiOptFormProp("supplierType"). Thus, in this scenario, the values provided by FormInput merely act as a suggestion and will not perform an override if no match is found.

supplierTypes

[
  {
     "code": "DI",
     "id": 2,
     "name": "Distributors"
  },
  {
     "code": "MF",
     "id": 1,
     "name": "Manufacturers"
  },
  {
     "code": "WS",
     "id": 3,
     "name": "Wholesalers"
  }
]

No ADS

Note that the Generics parameter - FORM_INPUT - is defined in both the Block and the FormModel.

FormModel

abstract class FormModel<
    ID extends Object,
    ITEM_DETAIL extends Identifiable<ID>,
    FORM_INPUT extends FormInput, // **
    FORM_RELATED_DATA extends FormRelatedData
    >

Block

abstract class Block<
    ID extends Object,
    ITEM extends Identifiable<ID>,
    ITEM_DETAIL extends Identifiable<ID>,
    FILTER_INPUT extends FilterInput,
    FILTER_CRITERIA extends FilterCriteria,
    FORM_INPUT extends FormInput,   // **
    FORM_RELATED_DATA extends FormRelatedData
    >

Make sure the Generics - FORM_INPUT parameter of Supplier26aFormModel and Supplier26aBlock are the same; otherwise, you will get a red error screen when the application starts.

Supplier26aFormModel




class Supplier26aFormModel
    extends
        FormModel<
          int, //
          SupplierData,
          Supplier26aFormInput, // **
          EmptyFormRelatedData
        >

Supplier26aBlock

class Supplier26aBlock
    extends
        Block<
          int,
          SupplierInfo,
          SupplierData,
          EmptyFilterInput,
          EmptyFilterCriteria,
          Supplier26aFormInput, // **
          EmptyFormRelatedData
        >

3. Supplier26aShelf

supplier26a_shelf.dart

class Supplier26aShelf extends Shelf {
  @override
  ShelfStructure defineShelfStructure() {
    return ShelfStructure(
      filterModels: {},
      blocks: [
        Supplier26aBlock(
          name: Supplier26aBlock.blkName,
          description: null,
          config: BlockConfig(),
          filterModelName: null,
          formModel: Supplier26aFormModel(),
          childBlocks: [],
        ),
      ],
    );
  }

  Supplier26aBlock findSupplier26aBlock() {
    return findBlock(Supplier26aBlock.blkName) as Supplier26aBlock;
  }
}

4. Supplier26aFormModel

The properties defined in the FormModel of this example are:

Supplier26aFormModel

class Supplier26aFormModel
    extends
        FormModel<
          int, //
          SupplierData,
          Supplier26aFormInput,
          EmptyFormRelatedData
        > {

  @override
  FormModelStructure defineFormModelStructure() {
    return FormModelStructure(
      simplePropDefs: [
        SimpleFormPropDef<int>(propName: "id"),
        SimpleFormPropDef<String>(propName: "name"),
        SimpleFormPropDef<String>(propName: "email"),
        SimpleFormPropDef<String>(propName: "address"),
        SimpleFormPropDef<String>(propName: "phone"),
        SimpleFormPropDef<bool>(propName: "active"),
        SimpleFormPropDef<String>(propName: "description"),
        // List<XFile>
        SimpleFormPropDef<dynamic>(propName: "xFiles"),
      ],
      multiOptPropDefs: [
        // Multi Option Single Selection Prop.
        MultiOptFormPropDef<SupplierTypeInfo>.singleSelection(
          propName: 'supplierType',
        ),
      ],
    );
  }
  ...
}

FormModel.patchFormFields()

When this method is called, the system initiates the process of extracting data from the FormInput to "patch" the form.

patchFormFields (*)

Supplier26aFormModel formModel = block.formModel as Supplier26aFormModel;

// Create a FormInput object:
Supplier26aFormInput formInput = Supplier26aFormInput.defaultForTest();

await formModel.patchFormFields(formInput: formInput);

No ADS

FormModel.performLoadMultiOptPropXData()

This is the method for loading actual data for multi-option fields. The rule is: root fields load first, followed by child fields.

performLoadMultiOptPropXData()

@override
Future<XData?> performLoadMultiOptPropXData({
  required String multiOptPropName,
  required SelectionType selectionType,
  required Object? parentMultiOptPropValue,
  required Supplier26aFormInput? formInput,
  required SupplierData? itemDetail,
  required EmptyFormRelatedData formRelatedData,
}) async {
  if (multiOptPropName == "supplierType") {
    ApiResult<SupplierTypeInfoPage> result = await _supplierTypeProvider
        .queryAll();
    result.throwIfError();
    //
    return ListXData<int, SupplierTypeInfo>.fromPageData(
      pageData: result.data,
      getItemId: (item) => item.id,
    );
  }
  return null;
}

FormModel.extractUpdateValueForMultiOptProp()

Based on the value from FormInput (e.g., code "DI"), this method extracts the correct Object (SupplierTypeInfo) from the loaded dataset to update the MultiOptFormProp.

extractUpdateValueForMultiOptProp()

@override
OptValueWrap? extractUpdateValueForMultiOptProp({
  required String multiOptPropName,
  required SelectionType selectionType,
  required XData multiOptPropXData,
  required Object? parentMultiOptPropValue,
  required Object? parentBlockCurrentItemId,
  required Supplier26aFormInput formInput,
  required EmptyFormRelatedData formRelatedData,
}) {
  if (multiOptPropName == "supplierType") {
    var listXData = multiOptPropXData as ListXData<int, SupplierTypeInfo>;

    SupplierTypeInfo? supplierType = listXData.data.firstWhereOrNull(
      (s) => s.code == formInput.supplierTypeCode,
    );
    return OptValueWrap.single(supplierType);
  }
  return null;
}

FlutterArtist ListXData

FormModel.extractUpdateValuesForSimpleProps()

This method relies on the attribute values of FormInput to extract the values to update the SimpleFormProp(s) of FormModel.

extractUpdateValuesForSimpleProps()

@override
Map<String, SimpleValueWrap?>? extractUpdateValuesForSimpleProps({
  required Object? parentBlockCurrentItemId,
  required Supplier26aFormInput formInput,
  required EmptyFormRelatedData formRelatedData,
}) {
  return {
    "email": SimpleValueWrap.useIfNotNull(formInput.email),
    "address": SimpleValueWrap.useIfNotNull(formInput.address),
    "phone": SimpleValueWrap.useIfNotNull(formInput.phone),
  };
}

No ADS
