FlutterArtist BlockQuickItemCreationAction Ex1
In FlutterArtist, BlockQuickItemCreationAction is a way to help you quickly create an ITEM and add it to a Block without using a Form. Basically, its operation is very similar to BlockQuickItemUpdateAction, which was covered in the article below:
BlockQuickItemCreationAction
abstract class BlockQuickItemCreationAction<
ID extends Object, //
ITEM extends Identifiable<ID>,
ITEM_DETAIL extends Identifiable<ID>,
FILTER_CRITERIA extends FilterCriteria> extends Action {
const BlockQuickItemCreationAction({
required super.needToConfirm,
required super.actionInfo,
});
Future<ApiResult<ITEM_DETAIL>> performQuickCreateItem({
required Object? parentBlockItem,
required FILTER_CRITERIA filterCriteria,
});
}BlockQuickItemCreationAction is executed by a Block to quickly create an ITEM_DETAIL, and the subsequent processing steps are similar to how a user creates a new item via a Form.
Example Scenario: Demo42a

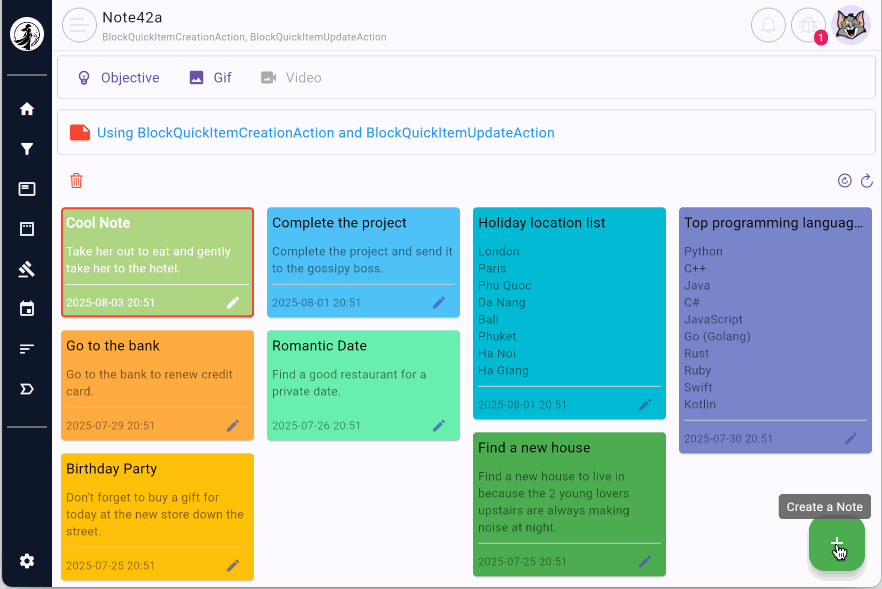

The main screen of the example displays a list of user Notes on a StaggeredGrid. The user clicks the "+" button to open a Dialog containing 2 TextField(s) to enter the title and content of the note. Then, they click the "Create" button to create the note.
Note that what you see on the Dialog is not a traditional Form; it simply consists of 2 TextField(s) to quickly gather information from the user.
No ADS
The title and content entered by the user in the Dialog are passed as parameters when creating a Note42aQuickCreateItemAction.
var createAction = Note42aQuickCreateItemAction(
title: "Note Title",
content: "Note Content",
needToConfirm: true,
actionInfo: 'Create a new note',
);
- FlutterArtist Action (***)
- FlutterArtist BlockSilentItemCreationAction Ex1 (***)
- FlutterArtist BlockSilentItemUpdateAction Ex1 (***)
- FlutterArtist BlockBackendAction Ex1 (***)

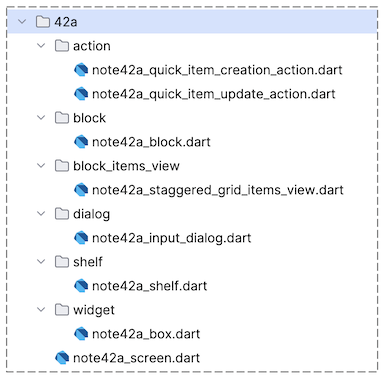

1. Structure of the example
In this example, the notes are displayed using StaggeredGrid, a widget provided by the flutter_staggered_grid_view library.
pubspec.yaml
dependencies:
flutter_staggered_grid_view: ^0.7.0
2. BlockQuickItemCreationAction
First, we create the Note42aQuickItemCreationAction class, extending BlockQuickItemCreationAction:
note42a_quick_item_creation_action.dart
class Note42aQuickItemCreationAction
extends
BlockQuickItemCreationAction<
int, //
NoteInfo,
NoteData,
EmptyFilterCriteria
> {
final String title;
final String content;
final _noteRestProvider = NoteRestProvider();
Note42aQuickItemCreationAction({
required this.title,
required this.content,
required super.needToConfirm,
required super.actionInfo,
});
@override
Future<ApiResult<NoteData>> performQuickCreateItem({
required Object? parentBlockItem,
required EmptyFilterCriteria filterCriteria,
}) async {
return await _noteRestProvider.quickCreateNote(
title: title,
content: content,
);
}
@override
CustomConfirmation? createCustomConfirmation() {
return null;
}
}Take a look at the FILTER_CRITERIA parameter in the definition of the BlockQuickItemCreationAction class. This parameter plays an important role: it can both provide input values for creating a new ITEM and determine whether the newly created ITEM should remain in the Block’s list. However, in the simple example shown here, FILTER_CRITERIA does not yet clearly demonstrate this role.
Note42aQuickItemCreationAction | BlockQuickItemCreationAction |
BlockQuickItemCreationAction.performQuickCreateItem()
The performQuickCreateItem() method of BlockQuickItemCreationAction plays a similar role to the performCreateItem() method of FormModel. Both methods share the same purpose: calling an API to create a new ITEM.
Future<ApiResult<ITEM_DETAIL>> performQuickCreateItem({
required Object? parentBlockItem,
required FILTER_CRITERIA filterCriteria,
});No ADS
After entering the title and content in the Dialog, the user clicks the "Create" button. The following code will be executed; in this code, we create a Note42aQuickItemCreationAction object and execute it via the Block:
executeQuickItemCreationAction()
var createAction = Note42aQuickItemCreationAction(
title: title,
content: content,
needToConfirm: false,
actionInfo: 'Create a new note',
);
//
BlockQuickItemCreationResult result = await widget.note42aBlock
.executeQuickItemCreationAction(action: createAction);
if (result.successForFirst && context.mounted) {
Navigator.of(context).pop();
}
- FlutterArtist FormModel.saveForm()
- FlutterArtist Block.executeQuickActionCreateItem()
- FlutterArtist Block.executeQuickActionUpdateItem()
- FlutterArtist BlockSilentItemCreationAction Ex1 (***)
- FlutterArtist BlockSilentItemUpdateAction Ex1 (***)
- FlutterArtist BlockBackendAction Ex1 (***)
3. Note42aShelf
Note42aShelf has a simple structure. It contains only a single Block and does not involve any FormModel.
note42a_shelf.dart
class Note42aShelf extends Shelf {
@override
ShelfStructure defineShelfStructure() {
return ShelfStructure(
filterModels: {},
blocks: [
Note42aBlock(
name: Note42aBlock.blkName,
description: null,
config: BlockConfig(),
filterModelName: null,
formModel: null,
childBlocks: [],
),
],
);
}
Note42aBlock findNote42aBlock() {
return findBlock(Note42aBlock.blkName) as Note42aBlock;
}
}4. Note42aBlock
note42a_block.dart
class Note42aBlock
extends
Block<
int,
NoteInfo, // ITEM
NoteData, // ITEM_DETAIL
EmptyFilterInput,
EmptyFilterCriteria,
EmptyFormInput,
EmptyFormRelatedData
> {
static const String blkName = "note42a-block";
final _noteRestProvider = NoteRestProvider();
Note42aBlock({
required super.name,
required super.description,
required super.config,
required super.filterModelName,
required super.formModel,
required super.childBlocks,
});
@override
Future<ApiResult<PageData<NoteInfo>?>> performQuery({
required Object? parentBlockCurrentItem,
required EmptyFilterCriteria filterCriteria,
required SortableCriteria sortableCriteria,
required Pageable pageable,
}) async {
return await _noteRestProvider.queryAll();
}
@override
Future<ApiResult<void>> performDeleteItemById({required int itemId}) async {
return await _noteRestProvider.delete(itemId);
}
@override
Future<ApiResult<NoteData>> performLoadItemDetailById({
required int itemId,
}) async {
return await _noteRestProvider.find(noteId: itemId);
}
@override
NoteInfo convertItemDetailToItem({required NoteData itemDetail}) {
return itemDetail.toNoteInfo();
}
@override
Object extractParentBlockItemId({required NoteInfo fromThisBlockItem}) {
throw FeatureUnsupportedException(
"Not Care!, See the document for details",
);
}
@override
bool needToKeepItemInList({
required Object? parentBlockCurrentItemId,
required EmptyFilterCriteria filterCriteria,
required NoteData itemDetail,
}) {
return true;
}
@override
EmptyFormInput buildInputForCreationForm({
required Object? parentBlockCurrentItem,
required EmptyFilterCriteria filterCriteria,
}) {
return EmptyFormInput();
}
@override
Future<EmptyFormRelatedData> performLoadFormRelatedData({
required Object? parentBlockCurrentItem,
required NoteData? currentItemDetail,
required EmptyFilterCriteria filterCriteria,
}) async {
return EmptyFormRelatedData();
}
}5. Note42aStaggeredGridItemsView

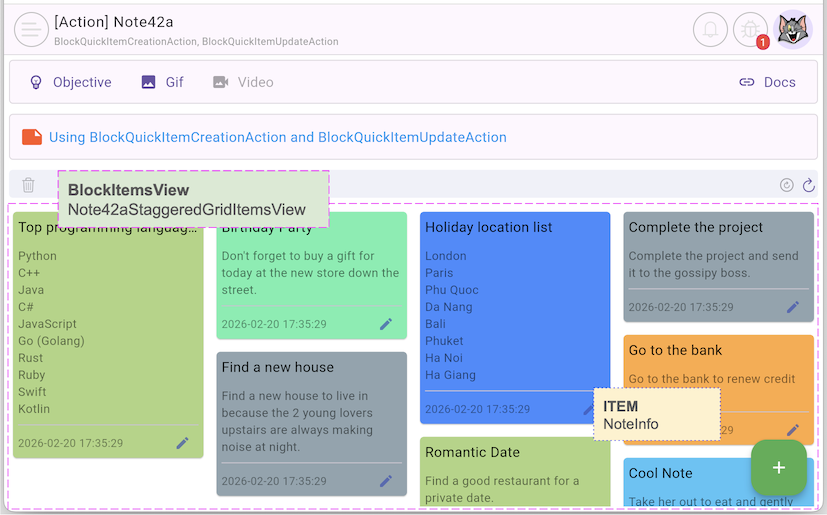

Note42aStaggeredGridItemsView displays ITEM(s) on a StaggeredGrid — a powerful widget from the flutter_staggered_grid_view package. Unlike traditional grids, StaggeredGrid allows cells of varying sizes to interweave artistically, creating a modern and engaging "masonry" interface, similar to the layout popularized by Pinterest.
To use this feature, you need to add the following dependency to your project:
pubspec.yaml
dependencies:
flutter_staggered_grid_view: ^0.7.0note42a_staggered_grid_items_view.dart
class Note42aStaggeredGridItemsView extends BlockItemsView<Note42aBlock> {
const Note42aStaggeredGridItemsView({required super.block, super.key});
@override
Widget buildContent(BuildContext context) {
final List<NoteInfo> items = block.items;
final int itemCount = items.length;
//
return LayoutBuilder(
builder: (BuildContext context, BoxConstraints constraints) {
final int boxWidth = 200;
int crossAxisCount = (constraints.constrainWidth() / boxWidth).toInt();
//
return MasonryGridView.count(
itemCount: itemCount,
crossAxisCount: crossAxisCount,
mainAxisSpacing: 5,
crossAxisSpacing: 5,
itemBuilder: (context, index) {
NoteInfo noteInfo = items[index];
bool selected = block.isCurrentItem(noteInfo);
//
return Note42aBox(
noteInfo: noteInfo,
selected: selected,
onNoteBoxPressed: (NoteInfo noteInfo) {
_onNotePressed(noteInfo);
},
onEditNoteBtnPressed: (NoteInfo noteInfo) {
_onEditNoteBtnPressed(context, noteInfo);
},
);
},
);
},
);
}
Future<void> _onNotePressed(NoteInfo noteInfo) async {
// Write Log:
FlutterArtist.codeFlowLogger.addMethodCall(
ownerClassInstance: this,
currentStackTrace: StackTrace.current,
parameters: null,
);
await block.refreshItemAndSetAsCurrent(item: noteInfo, navigate: null);
}
Future<void> _onEditNoteBtnPressed(
BuildContext context,
NoteInfo noteInfo,
) async {
// Write Log:
FlutterArtist.codeFlowLogger.addMethodCall(
ownerClassInstance: this,
currentStackTrace: StackTrace.current,
parameters: null,
);
await showNote42aInputDialog(context, note42aBlock: block, note: noteInfo);
}
}No ADS
