FlutterArtist BlockBackendAction Example

Structure of the example
ProjectContributor98aShelf
BlockBackendAction

In FlutterArtist, a BlockBackendAction is the logic that executes an action on the server side (such as creating, modifying, or deleting resources) and is performed by a Block.

BlockBackendAction

final action = AddContributors98aBlockBackendAction(
  projectId: projectId,
  needToConfirm: true,
  actionInfo: 'Add Multi Contributors',
);
await contributorBlock.executeBackendAction(
  actionConfirmationType: ActionConfirmationType.custom,
  action: action,
  navigate: null,
);

Note: Similar to QuickAction or data-modifying operations performed via a Form, BlockBackendAction can emit events both within and outside the Shelf. However, this example does not focus on the event mechanism; instead, it demonstrates how to execute a BlockBackendAction. After execution, the Block is automatically re-queried based on the BlockBackendAction’s configuration.

Comparison: QuickAction vs. BackendAction

To use them effectively, we must distinguish between the two response mechanisms after execution:

BlockQuickItemCreationAction

When creating an ITEM, if successful, the object is "injected" directly into the Block's current list. The user sees the result instantly without a re-query API call.

// An action to create a Product.
var action = ProductBlockItemCreationAction(data);
productBlock.executeItemCreationAction(action);

// If success:
//  New created Product is added to ProductBlock automatically.
//  No need to re-query.

No ADS

BlockBackendAction

Ideal for operations that significantly alter data structures on the Server. Upon success, the Block automatically triggers a re-query to ensure the UI data perfectly matches the actual Database state.

// An action to create a Product.
var action = ProductBackendAction(data);
productBlock.executeBackendAction(action);

// If success:
//  ProductBlock will be re-queried (Based on config)

Real-world Scenario: Demo98a

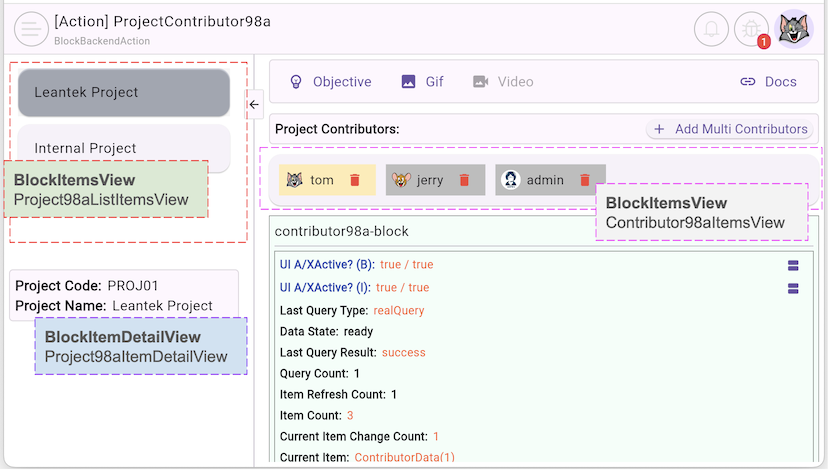

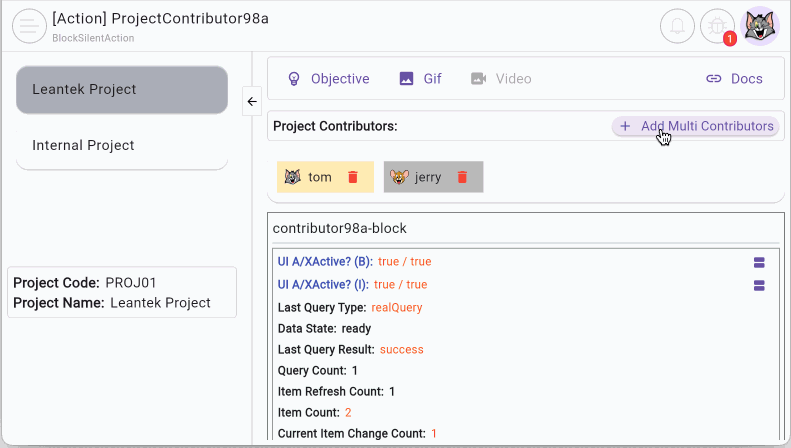

In this example, we have two Block(s): Project98aBlock and Contributor98aBlock, which have a parent-child relationship. Select a project from the list on the left, and you will see a list of contributors on the right. We will create two BlockBackendAction(s) to add and remove contributors from the project.

Download FlutterArtist Demo
FlutterArtist BlockQuickItemCreationAction Example
FlutterArtist BlockQuickItemUpdateAction Example
FlutterArtist BlockQuickMultiItemCreationAction Example

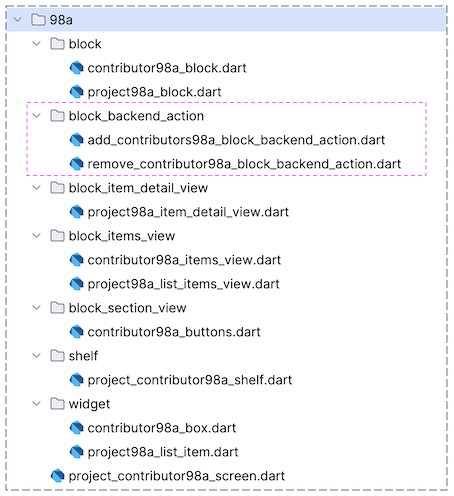

1. Structure of the example

2. ProjectContributor98aShelf

project_contributor98a_shelf.dart

class ProjectContributor98aShelf extends Shelf {
  @override
  ShelfStructure defineShelfStructure() {
    return ShelfStructure(
      filterModels: {},
      blocks: [
        Project98aBlock(
          name: Project98aBlock.blkName,
          description: null,
          config: BlockConfig(),
          filterModelName: null,
          formModel: null,
          childBlocks: [
            Contributor98aBlock(
              name: Contributor98aBlock.blkName,
              description: null,
              config: BlockConfig(),
              filterModelName: null,
              formModel: null,
              childBlocks: null,
            ),
          ],
        ),
      ],
    );
  }

  Project98aBlock findProject98aBlock() {
    return findBlock(Project98aBlock.blkName) as Project98aBlock;
  }

  Contributor98aBlock findContributor98aBlock() {
    return findBlock(Contributor98aBlock.blkName) as Contributor98aBlock;
  }
}

3. BlockBackendAction

First, let's look at the complete code of AddContributors98aBlockBackendAction; the most important property of this class is projectId.

AddContributors98aBlockBackendAction

class AddContributors98aBlockBackendAction
    extends BlockBackendAction<int, dynamic> {
  final _contributorRestProvider = ContributorRestProvider();

  final int projectId;

  AddContributors98aBlockBackendAction({
    required this.projectId,
    required super.needToConfirm,
    required super.actionInfo,
  });

  @override
  Future<ApiResult<dynamic>> performBackendOperation() async {
    return await _contributorRestProvider.addMultiContributors(projectId);
  }

  @override
  int? suggestNewCurrentItemId({required data}) {
    return null;
  }

  @override
  CustomConfirmation? createCustomConfirmation() {
    return null;
  }

  @override
  BlockBackendActionConfig initDefaultConfig() {
    return BlockBackendActionConfig(
      afterBackendAction: AfterBlockBackendAction.query,
    );
  }
}

Its performBackendOperation() method calls an API to add two contributors to the project (Simple Demo Scenario).

The suggestNewCurrentItemId() method extracts an ITEM_ID from the result of the performBackendOperation() method, with the purpose of suggesting which ITEM will be set as the current item after the Block is re-queryed. This method is only practical when this BackendAction is used to create ITEM(s) in the Backend.

Here's how to create and execute AddContributors98aBlockBackendAction:

_addMultiContributor()

Future<void> _addMultiContributor() async {
  FlutterArtist.codeFlowLogger.addMethodCall(
    ownerClassInstance: this,
    currentStackTrace: StackTrace.current,
    parameters: null,
  );
  int? projectId = block.parentBlockCurrentItemId as int?;
  if (projectId == null) {
    return;
  }
  final action = AddContributors98aBlockBackendAction(
    projectId: projectId,
    needToConfirm: true,
    actionInfo: 'Add Multi Contributors',
  );
  await block.executeBackendAction(
    actionConfirmationType: ActionConfirmationType.custom,
    action: action,
    navigate: null,
  );
}

Remove a Contributor from the project:

RemoveContributor98aBlockBackendAction

class RemoveContributor98aBlockBackendAction
    extends BlockBackendAction<int, dynamic> {
  final _contributorRestProvider = ContributorRestProvider();

  final ContributorInfo contributor;

  RemoveContributor98aBlockBackendAction({
    required this.contributor,
    required super.needToConfirm,
    required super.actionInfo,
  });

  @override
  Future<ApiResult<dynamic>> performBackendOperation() async {
    return await _contributorRestProvider.delete(contributor.id);
  }

  @override
  int? suggestNewCurrentItemId({required data}) {
    return null;
  }

  @override
  CustomConfirmation? createCustomConfirmation() {
    return null;
  }

  @override
  BlockBackendActionConfig initDefaultConfig() {
    return BlockBackendActionConfig(
      afterBackendAction: AfterBlockBackendAction.query,
    );
  }
}
