In our previous article, we explored manual sorting on lists (ReorderableListView). However, for grid-based interfaces, we need a more powerful solution: ReorderableGridView.

FlutterArtist Manual Sorting ReorderableListView

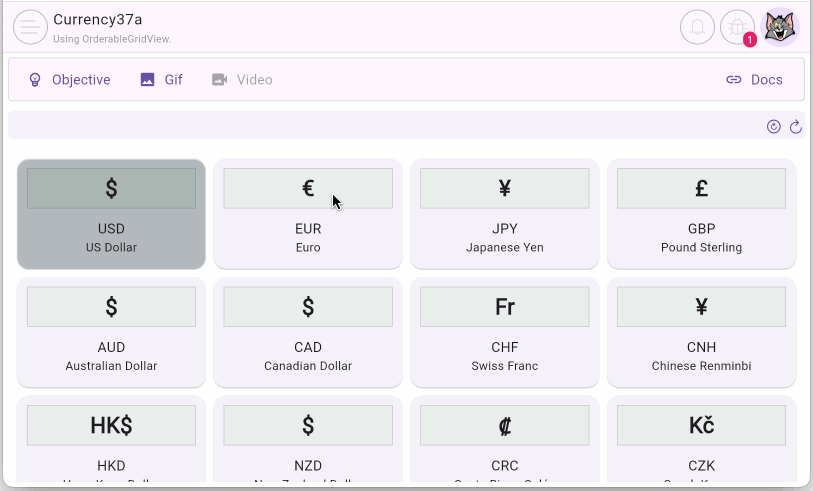

Note: Dragging and dropping ITEM(s) of ReorderableGridView does not seem to be as smooth and easy as ReorderableListView. You need to touch and hold the ITEM firmly for 1 second before dragging it to another location.

Download FlutterArtist Demo

1. Install the library

Important Note: Unlike ReorderableListView which is built-in, ReorderableGridView is a utility from a third-party library. You must add the dependency to your project:

https://pub.dev/packages/reorderable_grid_view

pubspec.yaml

dependencies:
  reorderable_grid_view: ^2.2.6

No ADS

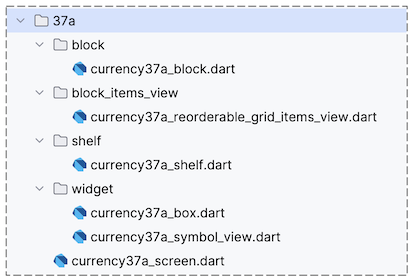

2. Structure of the example

3. Currency37aShelf

In FlutterArtist, to enable manual reordering of ITEM(s) on the client-side, the prerequisite is setting the sorting strategy in BlockConfig to SortStrategy.manual.

currency37a_shelf.dart

class Currency37aShelf extends Shelf {
  @override
  ShelfStructure defineShelfStructure() {
    return ShelfStructure(
      filterModels: {},
      blocks: [
        Currency37aBlock(
          name: Currency37aBlock.blkName,
          description: null,
          config: BlockConfig(clientSideSortStrategy: SortStrategy.manual),
          filterModelName: null,
          formModel: null,
          childBlocks: [],
        ),
      ],
    );
  }

  Currency37aBlock findCurrency37aBlock() {
    return findBlock(Currency37aBlock.blkName) as Currency37aBlock;
  }
}

No ADS

See more automatic sorting examples based on SortModel:
FlutterArtist Sort DropdownSortPanel Example
FlutterArtist Multi Sort ex1

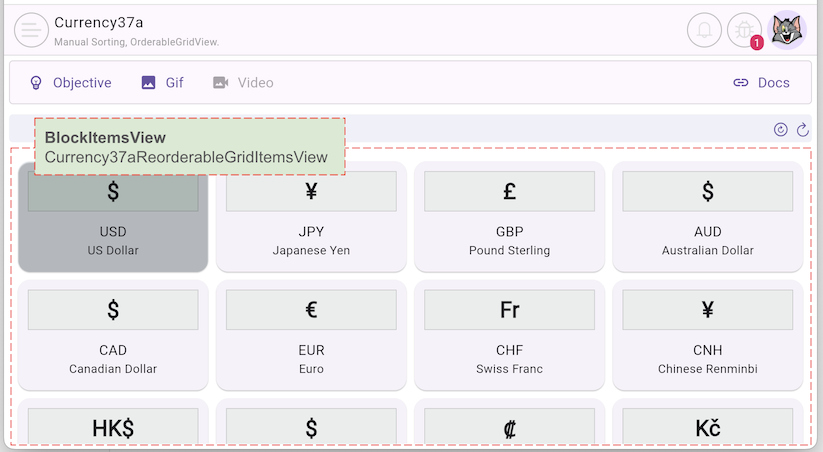

4. Currency37aReorderableGridItemsView

currency37a_reorderable_grid_items_view.dart

class Currency37aReorderableGridItemsView
    extends BlockItemsView<Currency37aBlock> {
  const Currency37aReorderableGridItemsView({
    required super.block,
    super.key,
  });

  @override
  Widget buildContent(BuildContext context) {
    List<CurrencyInfo> currencyInfos = block.items;
    //
    return LayoutBuilder(
      builder: (BuildContext context, BoxConstraints constraints) {
        final double minBoxWidth = 170;
        final int boxCount = constraints.constrainWidth() ~/ minBoxWidth;
        //
        final double boxHeight = 120;
        final double boxWidth = constraints.constrainWidth() / boxCount;
        final childAspectRatio = boxWidth / boxHeight;

        return ReorderableGridView.count(
            onReorder: (int oldIndex, int newIndex) {
              block.moveItemByIndexPosition(
                oldIndexPosition: oldIndex,
                newIndexPosition: newIndex,
              );
            },
            crossAxisCount: boxCount,
            mainAxisExtent: boxHeight,
            childAspectRatio: childAspectRatio,
            scrollSpeedController: (
              int timeInMilliSecond,
              double overSize,
              double itemSize,
            ) {
              // IMPORTANT:
              // Fix Error: The position being added has a smaller timestamp than...
              // https://github.com/huhuang03/reorderable_grid_view/blob/master/example/lib/demo/demo_reorderable_count.dart
              if (timeInMilliSecond > 1500) {
                return 15;
              } else {
                return 5;
              }
            },
            dragWidgetBuilderV2: DragWidgetBuilderV2(
              isScreenshotDragWidget: true,
              builder: (index, child, screenshot) {
                return child;
              },
            ),
            children: currencyInfos
                .map(
                  (currencyInfo) => Currency37aBox(
                    key: Key("Currency-${currencyInfo.id}"),
                    currencyInfo: currencyInfo,
                    selected: block.isCurrentItem(currencyInfo),
                    onCurrencyPressed: _onCurrencyPressed,
                  ),
                )
                .toList());
      },
    );
  }

  Future<void> _onCurrencyPressed(CurrencyInfo currencyInfo) async {
    // Write Log:
    FlutterArtist.codeFlowLogger.addMethodCall(
      ownerClassInstance: this,
      currentStackTrace: StackTrace.current,
      parameters: null,
    );
    // IMPORTANT:
    // - Call this method when the user clicks on an ITEM in the list.
    await block.refreshItemAndSetAsCurrent(
      item: currencyInfo,
      navigate: null,
    );
  }
}

No ADS
