FlutterArtist Manual Sorting ReorderableListView

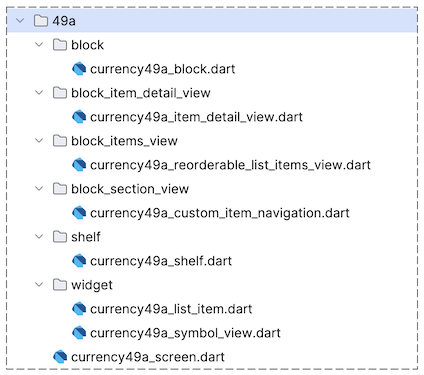

Structure of the example
Currency49aShelf
Currency49aReorderableListItemsView

In programming, "Manual sorting" refers to the process of organizing data elements in a specific order defined by the user, rather than relying on built-in sorting functions or automated algorithms. Instead, the application allows users to rearrange elements directly through Drag & Drop interactions.

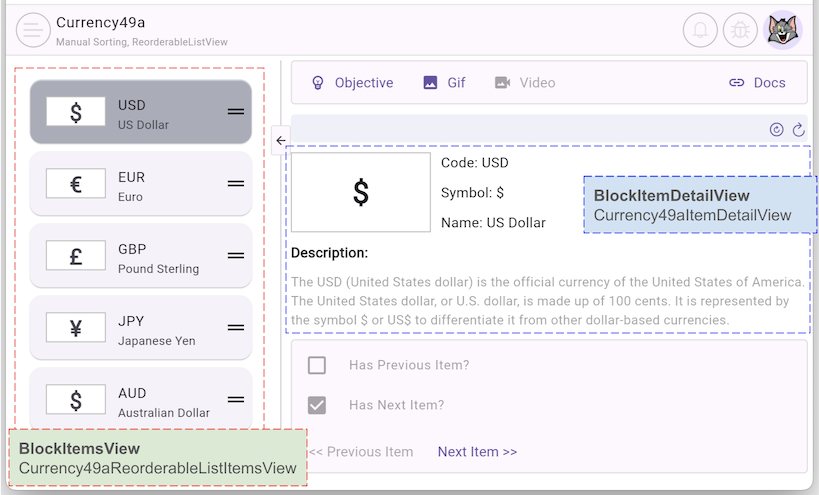

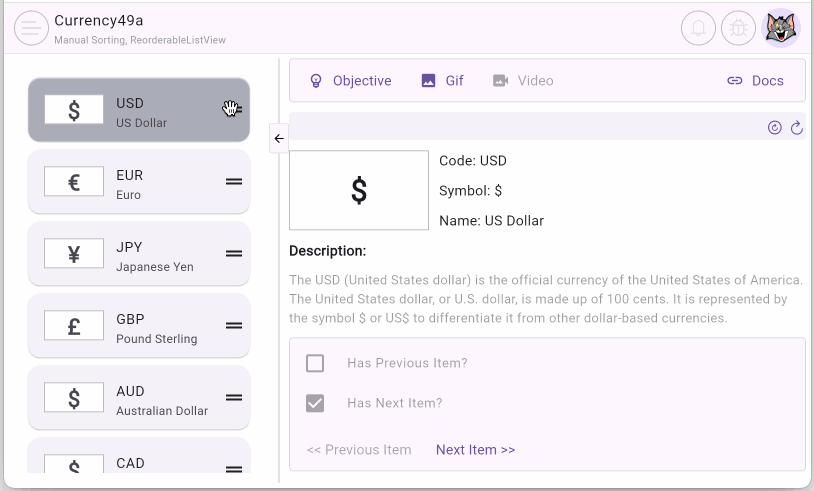

Demo49a

Trong bài viết này, chúng ta sẽ khám phá cách sử dụng ReorderableListView, một widget tiêu chuẩn của Flutter, kết hợp với hệ sinh thái FlutterArtist để hiện thực hóa tính năng này.

Download FlutterArtist Demo
See also similar examples, manual sorting with SortableGridView:
FlutterArtist Manual Sorting ReorderableGridView Example

1. Structure of the example

2. Currency49aShelf

In FlutterArtist, to enable manual reordering of ITEM(s) on the client-side, the prerequisite is setting the sorting strategy in BlockConfig to SortStrategy.manual.

No ADS

currency49a_shelf.dart

class Currency49aShelf extends Shelf {
  @override
  ShelfStructure defineShelfStructure() {
    return ShelfStructure(
      filterModels: {},
      blocks: [
        Currency49aBlock(
          name: Currency49aBlock.blkName,
          description: null,
          config: BlockConfig(clientSideSortStrategy: SortStrategy.manual),
          filterModelName: null,
          formModel: null,
          childBlocks: [],
        ),
      ],
    );
  }

  Currency49aBlock findCurrency49aBlock() {
    return findBlock(Currency49aBlock.blkName) as Currency49aBlock;
  }
}

See more automatic sorting examples based on SortModel:
FlutterArtist Sort DropdownSortPanel Example
FlutterArtist Multi Sort ex1

3. Currency49aReorderableListItemsView

We use the .builder() constructor of ReorderableListView to optimize performance for long lists.

Currency49aReorderableListItemsView (**)

Widget buildContent(BuildContext context) {
  List<CurrencyInfo> currencyInfos = block.items;
  //
  return ReorderableListView.builder(
    padding: EdgeInsets.all(5.0),
    itemCount: currencyInfos.length,
    onReorder: _onReorder,
    itemBuilder: (context, index) {
      CurrencyInfo currencyInfo = currencyInfos[index];
      return Currency49aListItem(
        key: Key("Currency-${currencyInfo.id}"),
        currencyInfo: currencyInfo,
        selected: block.isCurrentItem(currencyInfo),
        onCurrencyPressed: _onCurrencyPressed,
      );
    },
  );
}
...

Handling the Reorder Event

When a user drops an item into a new position, the onReorder event is triggered. Here, we need to update the item's position within the Block's data list.

onReorder

void _onReorder(int oldIndex, int newIndex) {
  int newIdx = newIndex > oldIndex ? newIndex - 1 : newIndex;
  block.moveItemByIndexPosition(
    oldIndexPosition: oldIndex,
    newIndexPosition: newIdx,
  );
}
