Debug Filter Criteria Inspector

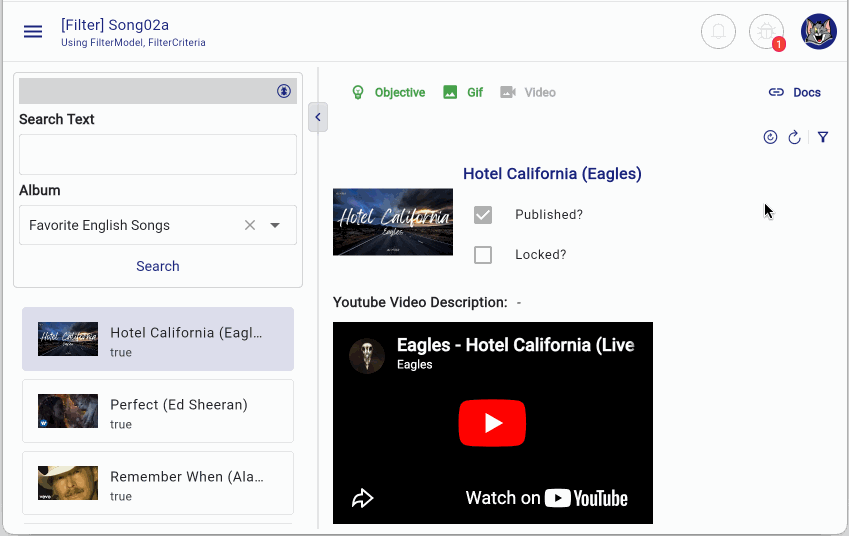

Debug Filter Criteria Inspector is a tool that allows you to inspect the filtering criteria used in the most recent data query of a Block or Scalar. This tool can be opened via a button on the BlockControlBar or ScalarControlBar.

Conditions to show the button

To display the Debug Filter Criteria Inspector button on the BlockControlBar, you need the following configuration:

// Config:
BlockControlBar(
  ...
  config: BlockControlBarConfig(
    ...
    allowDebugFilterCriteriaInspectorButton: true, // <-----
  ),
)

Additionally, you must ensure that: The Block must have an associated FilterModel and the current user must be a systemUser

// The Logged-in user must be systemUser.
ILoggedInUser? loggedInUser = FlutterArtist.loggedInUser;
bool isSystemUser = loggedInUser?.isSystemUser ?? false;

Open Inspector via code

You can also open the Debug Filter Criteria Inspector programmatically:

myBlock.showDebugFilterCriteriaInspector()

myScalar.showDebugFilterCriteriaInspector()

myFilterModel.showDebugFilterModelInspector()

FlutterArtist Debug Filter Model Inspector
FlutterArtist Debug Form Model Inspector

1. Debug Filter Criteria Inspector

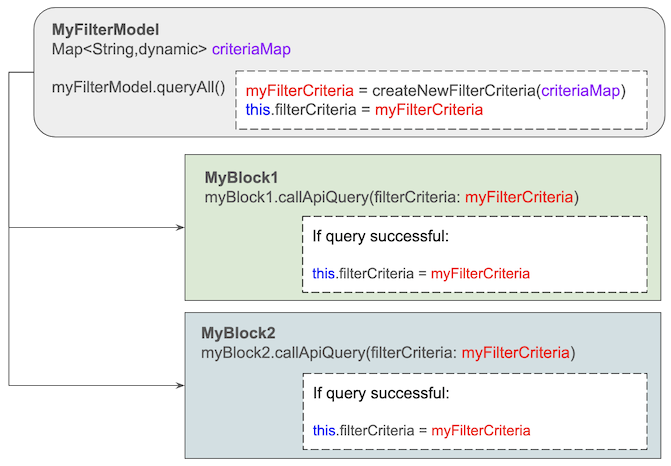

As you may know, in FlutterArtist a FilterModel can be shared across multiple Block(s) and Scalar(s). When you call filterModel.queryAll(), the processing flow will occur as illustrated in the diagram below.

No ADS

Processing Steps

The method MyFilterModel.createNewFilterCriteria() is invoked to transform criteriaMap into a Dart object (myFilterCriteria). At the same time, myFilterCriteria.fieldBasedJSON is also assigned from MyFilterModel.
If successful: myFilterModel.filterCriteria = myFilterCriteria
The myFilterCriteria object will be used to query blocks such as myBlock1 and myBlock2. If the query succeeds, it will be assigned to: myBlock1.filterCriteria and myBlock2.filterCriteria. In case of failure, these properties may be set to null (depending on the scenario, see further explanation below).

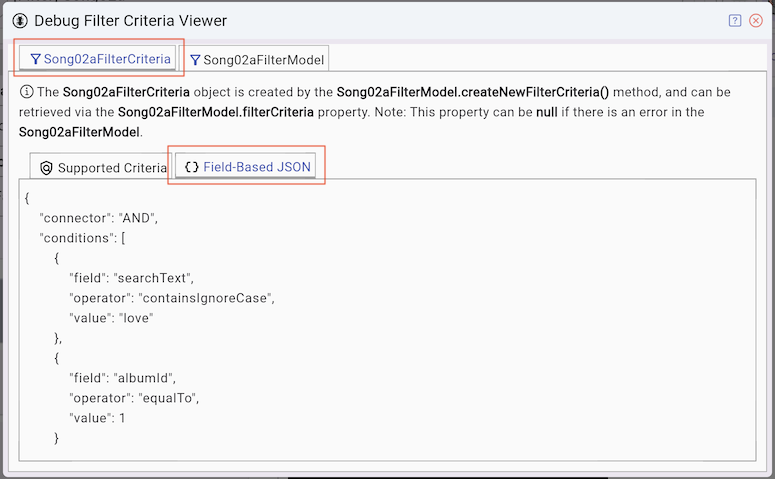

myFilterCriteria.fieldBasedJSON

Basically, fieldBasedJSON alone is sufficient to be sent to the server for querying and filtering data. FlutterArtist uses fieldBasedJSON to determine whether the filtering criteria have changed between queries.

fieldBasedJSON

{
    "connector": "AND",
    "conditions": [
        {
            "field": "searchText",
            "operator": "containsIgnoreCase",
            "value": "love"
        },
        {
            "field": "albumId",
            "operator": "equalTo",
            "value": 1
        }
    ]
}

No ADS

Simplifying Server-Side Logic

For simple applications, sending fieldBasedJSON may introduce unnecessary complexity on the server side. Instead, you can directly map values from the FilterModel to the FilterCriteria object.

class Song02aFilterModel
    extends
        FilterModel<
          EmptyFilterInput, //
          Song02aFilterCriteria
        > {
  ...
  @override
  Song02aFilterCriteria createNewFilterCriteria({
    required Map<String, dynamic> criteriaMap,
  }) {
    return Song02aFilterCriteria(
      album: criteriaMap["album~"], // AlbumInfo?
      searchText: criteriaMap["searchText~"], // String?
    );
  }
}

Then use these values as parameters in your API call:

@override
Future<ApiResult<PageData<SongInfo>?>> performQuery({
  required Object? parentBlockCurrentItem,
  required Song02aFilterCriteria filterCriteria,
  required SortableCriteria sortableCriteria,
  required Pageable pageable,
}) async {
  return await songRestProvider.querySearch(
    pageable: pageable,
    searchText: filterCriteria.searchText,
    albumId: filterCriteria.album?.id,
  );
}

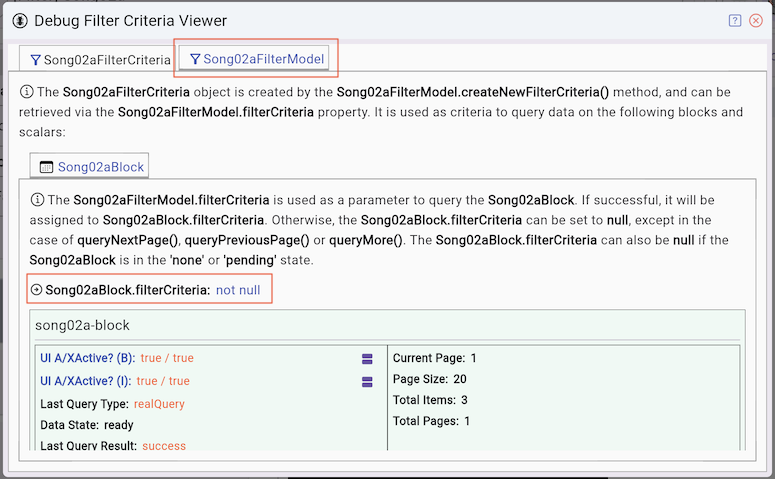

XxxFilterModel

On the XxxFilterModel tab, you can view: All Block(s) and Scalar(s) using this FilterModel and their current states. This helps you debug and track data flow more effectively.

XxxBlock.filterCriteria = null

XxxBlock.filterCriteria may be null in the following scenarios:

XxxBlock is a child block in the none state (its parent block has no current item).
XxxBlock is in the pending state because no related UI component is currently visible, so querying it is unnecessary.
XxxBlock was queried using XxxFilterModel.filterCriteria, but the query failed. If the query succeeds, XxxBlock.filterCriteria will be assigned from XxxFilterModel.filterCriteria.

XxxBlock.filterCriteria != null

XxxBlock.filterCriteria may have a value in the following scenarios:

XxxBlock was successfully queried using XxxFilterModel.filterCriteria. In this case, XxxBlock.filterCriteria is assigned from XxxFilterModel.filterCriteria.
XxxBlock was previously queried successfully, and then queried again using methods such as queryNextPage(), queryPreviousPage(), or queryMore(). If these subsequent queries fail, XxxBlock.filterCriteria remains unchanged.

FlutterArtist Block DataState
