FlutterArtist Debug Form Model Inspector

Debug Form Model Inspector

Debug Form Model Inspector is a tool that allows you to inspect the state and data of a FormModel. This tool can be opened via a button on the BlockControlBar or programmatically via code.

Conditions to show the button

To display the Debug Form Model Inspector button on the BlockControlBar, you need the following configuration:

BlockControlBar(
  ...
  config: BlockControlBarConfig(
    ...
    allowDebugFormModelInspectorButton: true, // <-----
  ),
)

Additionally, it's necessary to ensure that this Block actually has a FormModel and that the user is a systemUser.

ILoggedInUser? loggedInUser = FlutterArtist.loggedInUser;
bool isSystemUser = loggedInUser?.isSystemUser ?? false;

No ADS

Open Inspector via code

You can also open the Debug Form Model Inspector through the code:

myFormModel.showDebugFormModelInspector()

FlutterArtist Debug Filter Model Inspector
lutterArtist Debug Filter Criteria Inspector

1. Debug Form Model Inspector

First, let’s look at a simple example of a FormModel with defined properties.

Supplier11aFormModel

class Supplier11aFormModel
    extends
        FormModel<
          int, //
          SupplierData,
          EmptyFormInput,
          EmptyAdditionalFormRelatedData
        > {

  @override
  FormModelStructure defineFormModelStructure() {
    return FormModelStructure(
      simplePropDefs: [
        SimpleFormPropDef<int>(propName: "id"),
        SimpleFormPropDef<String>(propName: "name"),
        SimpleFormPropDef<String>(propName: "email"),
        SimpleFormPropDef<String>(propName: "address"),
        SimpleFormPropDef<String>(propName: "phone"),
        SimpleFormPropDef<bool>(propName: "active"),
        SimpleFormPropDef<String>(propName: "description"),
        // dynamic or List<XFile>
        SimpleFormPropDef<dynamic>(propName: "xFiles"),
      ],
      multiOptPropDefs: [
        // Multi Option Single Selection Prop.
        MultiOptFormPropDef<SupplierTypeInfo>.singleSelection(
          propName: 'supplierType',
        ),
      ],
    );
  }
  ...
}

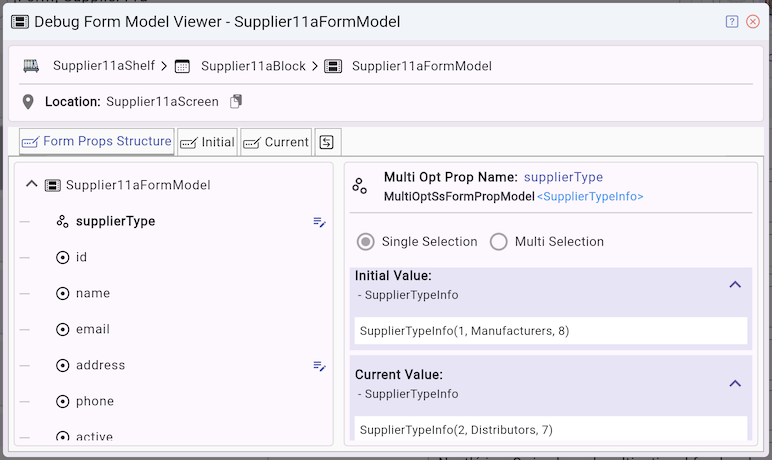

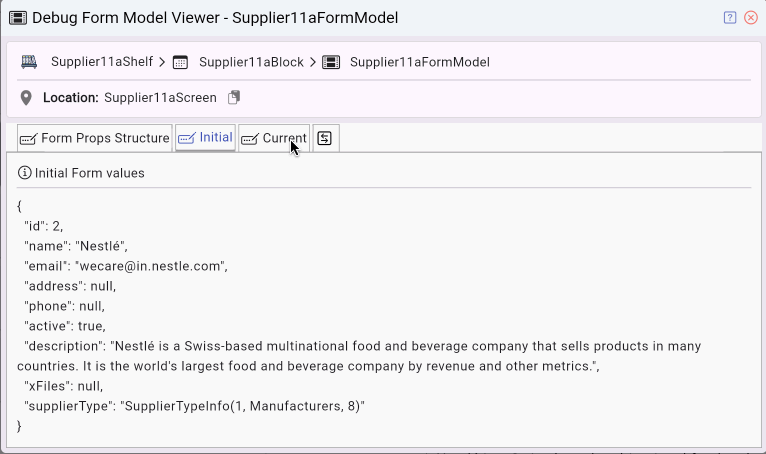

In the Debug Form Model Inspector, you can see the data types of these properties and their current values.

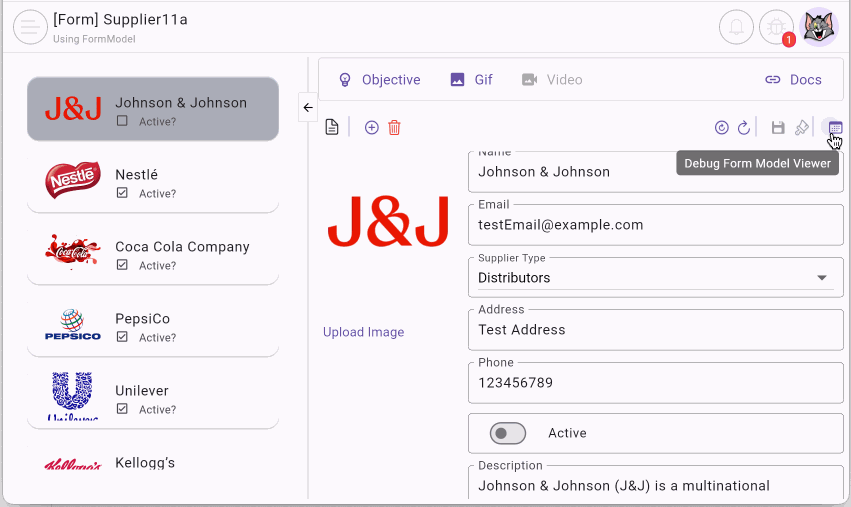

When users input or select values in the FormView, those values are updated in the FormModel. You can observe these changes in real time via the Debug Form Model Inspector.

The "dirty" state of a property

The tool also allows you to track the "dirty" state of each property.

A property is marked as dirty when its value has changed compared to its initial value.
This is particularly useful for: identifying what the user has modified, deciding whether an update API call is necessary

No ADS
